Job cannot reach 100%cpu when submitting through openPBS

Users/Site Administrators
1

I successfully installed openhpc on CentOS8.3 and I found weird behaviour of openpbs. (my compute node has 32 cpus)

If I directly login to compute node and run command ex. mpiexec.hydra -np 32 vasp_std (Intel MPI). The %cpu can reach ~100% (almost full speed) without any problem.

However, If I submit job through openpbs via pbs script, the %cpu will be reduce ~50% and the job will run at half speed even I set to use all cpus (#PBS -l nodes=1:ppn=32)

Screen Shot 2564-03-26 at 01.30.22
Screen Shot 2564-03-26 at 01.30.22591×515 7.75 KB

These results are from the same job and same compute node. It seems that openPBS block the total %cpu usage. I don’t know how to solve this problem.

Could you please help me to solve weird behaviour ?

2

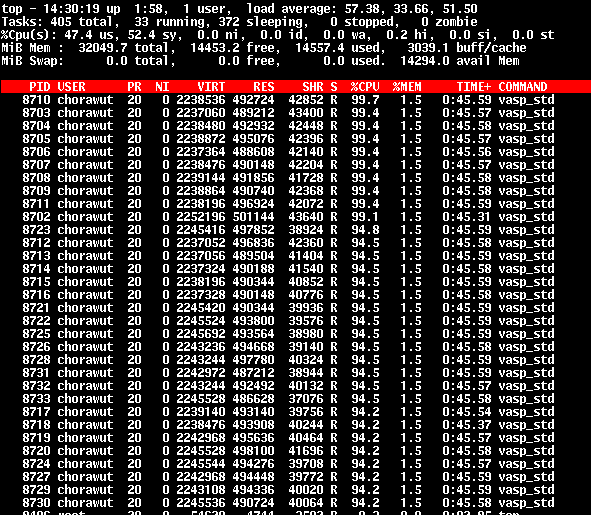

This is the result when I run directly on compute node

run directly on node
run directly on node588×518 9.76 KB

I can get ~100% cpu usage.

3

here is my setting.

Screen Shot 2564-03-26 at 01.44.46
Screen Shot 2564-03-26 at 01.44.46352×531 5.56 KB

4

Could you please share the

  1. The script that you ran without using openpbs
  2. The script that you run with openpbs
  3. the mpi flavour you are using ( intel, openmpi, platform , etc )
    • did you compile the MPI library with openpbs TM library
      example: FAQ: Building Open MPI
      29. How do I build Open MPI with support for PBS Pro / Open PBS / Torque?

#PBS -l select=1:ncpus=32:mpiprocs=32

  • please run this with select statement instead of -l nodes=1:ppns=32
5

Yeh …it is related to our Intel MPI. If I used Intel MPI (2015) , I can get full 100% cpu usage. But Intel MPI (2017), the cpu usage is reduced by 50%. I don’t know how to fix our intel compiler (2017) because the installation is almost automatic. (./install.sh). I don’t know how to add TM supported to my intel compiler.
I used openPBS installed on CentOS 8.3.

6

Yep Now I can solve my problem by adding this to my PBS script
export I_MPI_PIN=off
export I_MPI_PIN_DOMAIN=socket

Thanks

1 Like
7

If you are using Intel MPI, then you do not need to compile from source.

Link: https://www.altair.com/pdfs/pbsworks/PBSUserGuide2021.1.pdf
Section: 5.2.7 Intel MPI 2.0.022, 3, and 4 with PBS

Thank you

8

Thanks a lot
